Smart and Portable

Ultra-slim & Compact Handpiece with Torque Control & Auto Reverse

ENDO-MATE DT is smart enough to memorise exact speed and torque settings for up to 9 Ni-Ti files from all major suppliers. Its auto-reverse features 3 working modes - autoreverse on, auto-stop, auto-reverse off. The motor reacts when load reaches the preset level of torque. With on-off switch, it offers flexibility of pedal-free operation (optional foot control unit available), while providing convenience of full portability with two-way power supply, either AC or battery driven.

Technology & Function

  • Push Type Ultra Miniature Head
    Push Type Ultra Miniature Head

    Allows fast and easy exchange of files during procedures. Compact head offers excellent visibility of reatment spots.

  • Quick Joint
    Quick Joint

    Quick release system allows for easy head exchange. Compact head allows excellent visibility of the treatment spot.

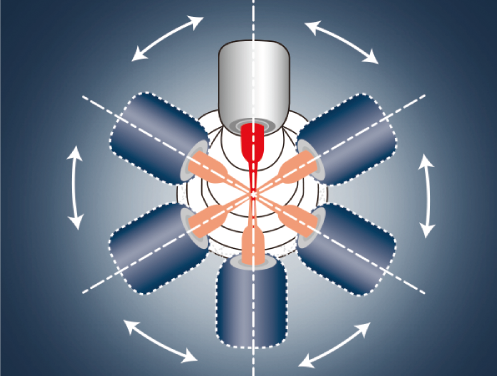

  • 6 Head Angles
    6 Head Angles

    Depending on the position of treatment site, the head angle can be adjusted to the best angle.

  • Foot Pedal
    Foot Pedal

    Micromotor On / Off operation is activated via the convenient finger switch located on the micromotor. An Optional foot control is available.

  • Flat Panel
    Flat Panel

    Flat control panel allows simple user friendly operation.

  • A Liquid Crystal Display
    A Liquid Crystal Display

    Wide screen provides high visibility.

ENDO-MATE DT

ENDO-MATE DT

  • Model:ENDO-MATE DT (120 V)
  • Order Code:Y141120

Specifications

  • Power Supply
  • AC 120 V 60 Hz and Battery pack
  • Number of Programs
  • 9
  • Max Torque
  • 7 Ncm (When Using 20:1 Head)
  • Speed Range
  • 100-13,000 min-1 (with 20:1, 4:1, 1:1 Geared Heads)
  • Charge / Continuous Use
  • 5 h / 2 h (Depending on Workload)
  • Dimensions
  • W 92 x D 148 x H 124 mm
  • Weight (Unit)
  • 456 g
  • Weight (Motor Handpiece & Cord)
  • 92 g

Contents

  • Control Unit
  • Motor and Cord
  • MP-F20R Head (20:1)
  • Handpiece Stand
  • AC Adaptor

Heads / Gears

MP-Y

  • Heads – 2023
    • Model:MP-Y
    • Order Code:C547

    Specifications

    • Head
    • Miniature
    • For
    • Ni-Ti files (ø2.35) / 360° Rotation
    • Max Speed
    • 20,000 min-1

    Features

    • Push Button Chuck

FC1:1

  • Heads – 2023
    • Model:FC
    • Order Code:C873

    Specifications

    • Gear Ratio
    • 1:1 Direct Drive

F4R4:1

  • Heads – 2023
    • Model:F4R
    • Order Code:C872

    Specifications

    • Gear Ratio
    • 4:1 Reduction

F10R10:1

  • Heads – 2023
    • Model:F10R
    • Order Code:C398

    Specifications

    • Gear Ratio
    • 10:1 Reduction

F16R16:1

  • Heads – 2023
    • Model:F16R
    • Order Code:C871

    Specifications

    • Gear Ratio
    • 16:1 Reduction

F20R20:1

  • Heads – 2023
    • Model:F20R
    • Order Code:C399

    Specifications

    • Gear Ratio
    • 20:1 Reduction
