Feel the Satisfaction of X Series Performance

NSK X series contra-angles feature the advanced technology combined with elegant yet ergonomic design. X series contra-angles have been designed without compromise paying attention to every last detail. Better possible access to the operating field and maximum visibility were the most important criteria during the design process of the instrument body. Unrivaled reliability and superior operator and patient comfort reflect all the expertise which has been built into each and every model of the NSK Ti-Max X Series.

Technology & Function

General Applications

X95L1:5

  • General Applications/ X95L
    • Optic
    • Model:X95L
    • Order Code:C600

    Specifications

    • Gear Ratio
    • 1:5 Increasing
    • For
    • FG Burs (Ø1.6)
    • Water Spray
    • Quattro Spray
    • Body Material
    • Titanium
    • Body Coating
    • DURACOAT
    • Max Speed
    • 200,000 min-1

    Features

    • Cellular Glass Optics
    • Ceramic Bearings
    • Clean Head System
    • Push Button Chuck
    • Microfilter

X85L1:5

  • General Applications/X85L
    • Optic
    • Model:X85L
    • Order Code:C604

    Specifications

    • Head
    • Miniature Head
    • Gear Ratio
    • 1:5 Increasing
    • For
    • FG Burs (Ø1.6)
    • Water Spray
    • Single Spray
    • Body Material
    • Titanium
    • Body Coating
    • DURACOAT
    • Max Speed
    • 200,000 min-1

    Features

    • Cellular Glass Optics
    • Ceramic Bearings
    • Clean Head System
    • Push Button Chuck
    • Microfilter

    Short shank burs only

X25L1:1

  • General Applications/X25L
    • Optic
    • Model:X25L
    • Order Code:C601

    Specifications

    • Gear Ratio
    • 1:1 Direct Drive
    • For
    • CA Burs (Ø2.35)
    • Water Spray
    • Single Spray
    • Body Material
    • Titanium
    • Body Coating
    • DURACOAT
    • Max Speed
    • 40,000 min-1

    Features

    • Cellular Glass Optics
    • Clean Head System
    • Push Button Chuck
    • Microfilter

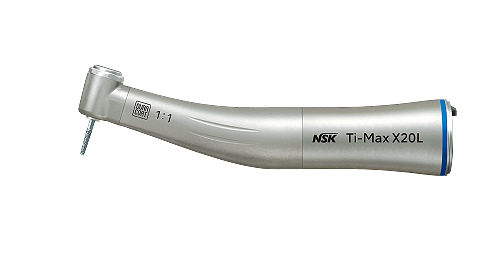

X20L1:1

  • General Applications/X20L
    • Optic
    • Model:X20L
    • Order Code:C605

    Specifications

    • Gear Ratio
    • 1:1 Direct Drive
    • For
    • FG Burs (Ø1.6)
    • Water Spray
    • Single Spray
    • Body Material
    • Titanium
    • Body Coating
    • DURACOAT
    • Max Speed
    • 40,000 min-1

    Features

    • Cellular Glass Optics
    • Clean Head System
    • Push Button Chuck
    • Microfilter

X15L4:1

  • General Applications/X15L
    • Optic
    • Model:X15L
    • Order Code:C602

    Specifications

    • Gear Ratio
    • 4:1 Reduction
    • For
    • CA Burs (Ø2.35)
    • Water Spray
    • Single Spray
    • Body Material
    • Titanium
    • Body Coating
    • DURACOAT
    • Max Speed
    • 10,000 min-1

    Features

    • Cellular Glass Optics
    • Clean Head System
    • Push Button Chuck
    • Microfilter

Straight Handpieces

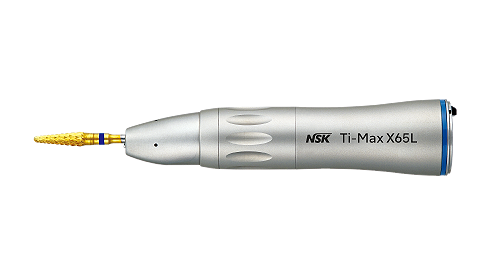

X65L1:1

  • Straight Handpieces/X65L
    • Optic
    • Model:X65L
    • Order Code:H273

    Specifications

    • Gear Ratio
    • 1:1 Direct Drive
    • For
    • HP Burs (Ø2.35) / CA Burs (Ø2.35)*
    • Water Spray
    • Single Spray
    • Body Material
    • Titanium
    • Body Coating
    • DURACOAT
    • Max Speed
    • 40,000 min-1

    * Need to insert the supplied bur stopper

    Features

    • Cellular Glass Optics
    • Clean Head System
